Windproof External Paving

Windproof Flooring Systems for Outdoor Paving: Non Combustible A1

Windproof pedestal flooring systems are designed to withstand high wind loads, making them ideal for outdoor paving areas that are exposed to strong gusts. This system consist of interlocking 20mm Porcelain tiles. The interlocking design ensures that the tiles stay in place and do not lift or shift when exposed to strong winds or wind Uplift by utilising an interlocking clip system that slots into pre-grooved ridges along the porcelain tiles.

A wind-resistant terrace featuring large, square gray stone-effect tiles. The image includes outlines of furniture being affected by strong winds, demonstrating the durability of the tile installation.

System Features

  • Pre-grooved: Pre-grooved Porcelain Tiles grooving 6mm deep and 9mm wide to ensure a secure interlocking clip with high wind uplift resistance.
  • Easy Access: The system also allows for easy access to services such as plumbing or electrical cables that may run beneath the flooring.
  • Fire Rating: A1 fire-rated and non-combustible, the system provides a safe and secure outdoor flooring solution with the complete system achieving A1 fire rating.
  • Warranty: 30 Year Warrantee
  • System Material: Zinc Nickel electroplated mild steel
  • Adjustable: Can be used with any of our 20mm tile ranges in all sizes and has adjustable build up height from 25-505mm


Further technical details and downloads below.

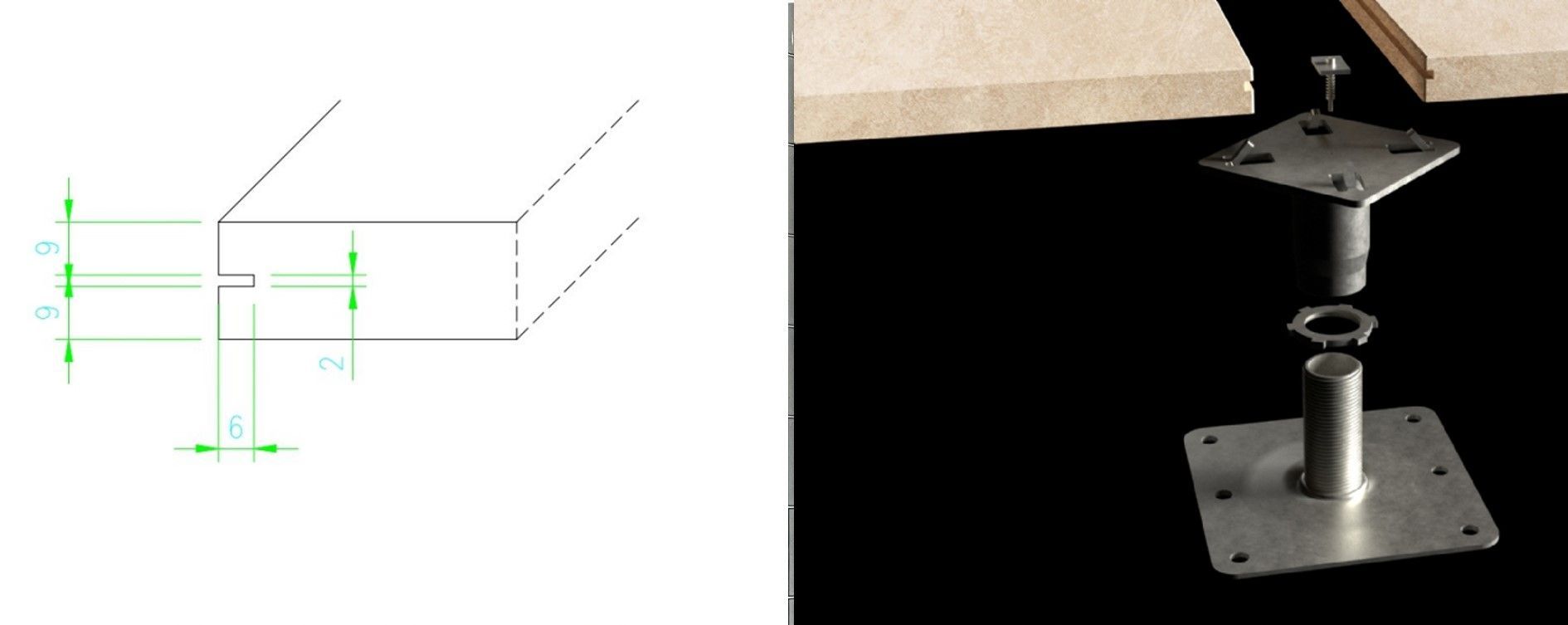

A detailed diagram and installation image showing the pedestal system for raised tile floors. The diagram highlights the measurements and components of the system, while the installation image demonstrates the placement of tiles over the pedestals.

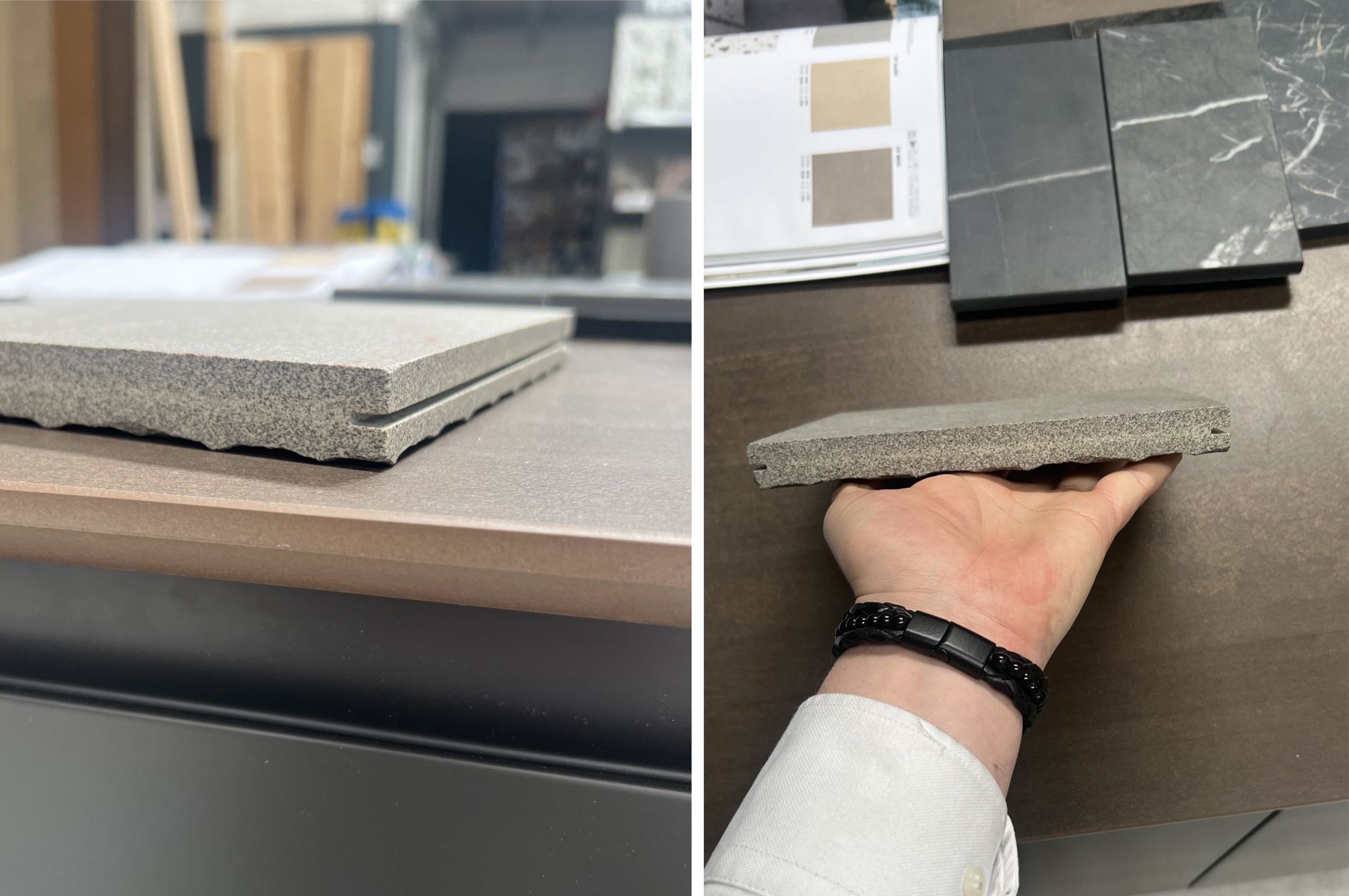

A close-up view of a tile sample with a pre-grooved edge, designed for easy installation on raised pedestal systems. The image shows both the grooved and textured surface of the tile for structural comparison.

A1 Fire Rated Non Combustible Pedestals

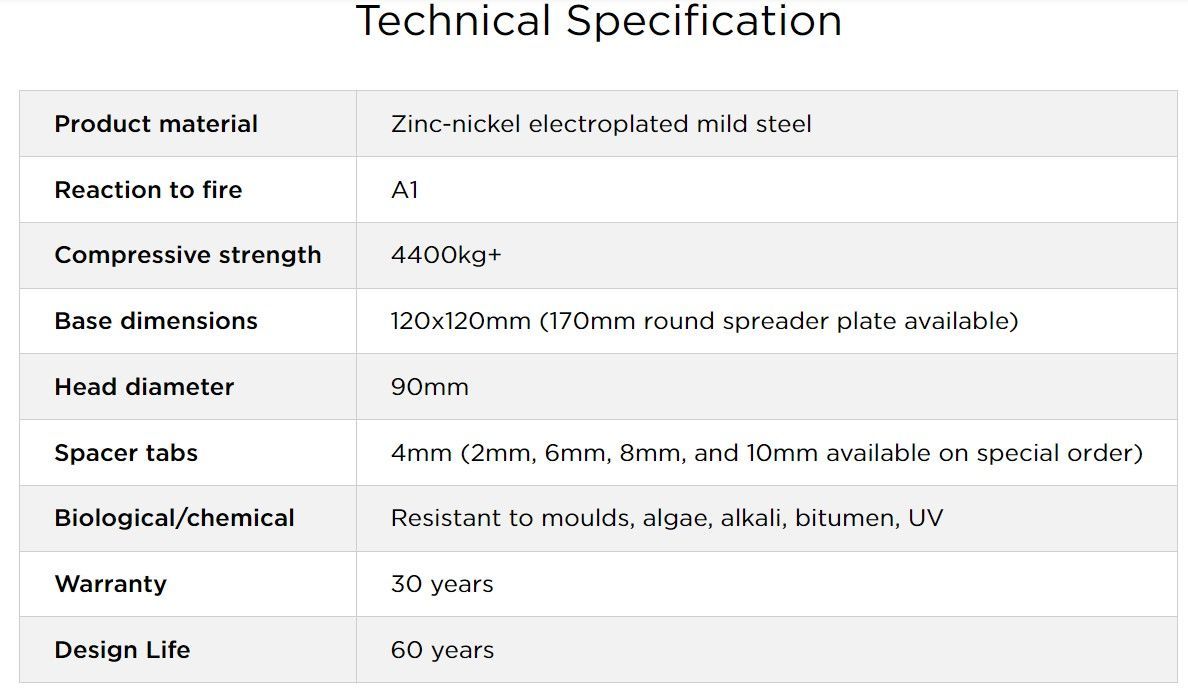

A table detailing the technical specifications for a tile pedestal system, including material, fire resistance, compressive strength, and design life. The specifications highlight the durability and suitability of the product for outdoor use.
An image showing various sizes of adjustable tile pedestals, labeled with different height ranges, designed for use in raised flooring systems. The pedestals provide stability and flexibility for different installation heights.

Downloads (Awaiting Windproof Update)

Accessories

A light gray tiled floor in a modern reception area with a minimalist design and a floating desk under elegant pendant lighting.


What Are The Benefits of Windproof Flooring Systems


Investing in windproof flooring systems for external outdoor paving offers a range of benefits, including:

  • Increased safety: Windproof flooring systems prevent tiles from becoming dislodged, which reduces the risk of injury to pedestrians.
  • Reduced maintenance: Windproof flooring systems require less maintenance as they do not need to be constantly replaced or repositioned.
  • Improved aesthetics: Windproof flooring systems are available in a range of colors, textures, and finishes, allowing you to choose the best option that suits the overall design of your outdoor space.
  • Increased lifespan: Windproof flooring systems have a longer lifespan compared to traditional outdoor paving options, reducing the need for frequent replacements.


Windproof flooring systems are an essential investment for anyone looking to design an outdoor space that can withstand the challenges of wind. Not only do they increase safety and reduce maintenance costs, but they also offer improved aesthetics and a longer lifespan compared to traditional outdoor paving options. Make sure to choose the right windproof flooring system for your outdoor space to ensure that it can withstand strong winds for years to come.
