Windproof Flooring Systems for External Outdoor Paving: Designing for Durability and Safety

 Windproof Flooring Systems for External Outdoor Paving: An Architectural Overview

External outdoor paving is a crucial aspect of any architectural design. Not only does it provide a functional space for foot traffic, but it also adds aesthetic value to the overall design. However, designers must consider the location of the project, particularly the wind conditions, to ensure the safety and durability of the pavement. In this article, we will explore the importance of windproof flooring systems for external outdoor paving and the benefits they bring to architectural design.

Designing for Durability and Safety

When designing external outdoor paving, architects must consider the safety and durability of the pavement. Wind conditions can have a significant impact on the safety of the pavement, particularly if it is not designed to withstand strong winds. To ensure safety, designers must use windproof flooring systems that are specifically engineered to withstand high wind loads.

Windproof flooring systems consist of a combination of materials, such as concrete or porcelain, that are designed to create a stable surface that can withstand high wind loads. These materials are carefully chosen and combined to ensure maximum durability and safety. Porcelain tiles, for example, are a popular choice for windproof flooring systems as they are resistant to weathering and offer excellent slip resistance.

Benefits of Windproof Flooring System to Architectural Design

Investing in windproof flooring systems for external outdoor paving offers a range of benefits, including:

• Increased safety: Windproof flooring systems prevent tiles from becoming dislodged, which reduces the risk of injury to pedestrians.
• Reduced maintenance: Windproof flooring systems require less maintenance as they do not need to be constantly replaced or repositioned.
• Improved aesthetics: Windproof flooring systems are available in a range of colors, textures, and finishes, allowing you to choose the best option that suits the overall design of your outdoor space.
• Increased lifespan: Windproof flooring systems have a longer lifespan compared to traditional outdoor paving options, reducing the need for frequent replacements.

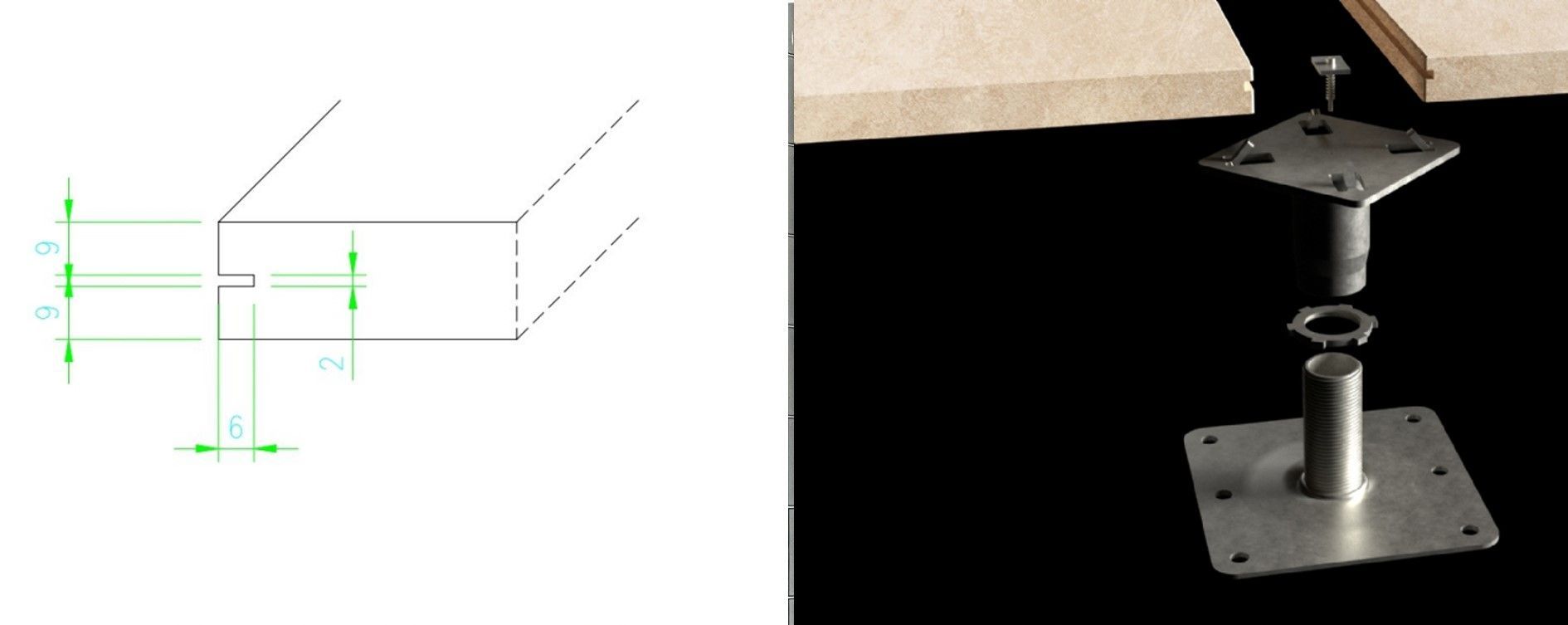

How Does a Pre-Grooved Porcelain Tile and Pedestal Clip System Work?

• Pre-grooved: A pre-grooved porcelain tile and pedestal clip system is an efficient and practical solution for windproof outdoor flooring.
• System: The system includes porcelain tiles with grooves on their underside and specially designed pedestals with clips that hold the tiles securely in place.
• Groove Details: The grooves on the tiles and the clips on the pedestals eliminate the need for adhesives or screws, making installation faster and easier, these grooves are done at the factory after production of the tiles, grooving 6mm deep and 9mm wide to ensure a secure interlocking clip with high wind uplift resistance.
• Easy Access: The system also allows for easy access to services such as plumbing or electrical cables that may run beneath the flooring.
• Fire Rating: When combined with pedestals that are A1 fire-rated and non-combustible, the system provides a safe and secure outdoor flooring solution with the complete system achieving A1 fire rating.


Pre-grooved 20mm porcelain example

Fire Safety: The Importance of A1-Rated Pedestals and Non-Combustible Porcelain for Windproof Outdoor Flooring Systems?

When designing windproof flooring systems for outdoor areas, it is not only important to choose non-combustible materials, but also to ensure that all components, including pedestals, meet the same safety standards. A pedestal is a support system that raises the tiles or pavers off the substrate, allowing for proper water drainage and ventilation.

If the pedestals are not also A1 fire rated and non-combustible, they could pose a serious safety hazard. In the event of a fire, combustible pedestals could ignite, causing the tiles or pavers to collapse and creating a dangerous situation for anyone in the vicinity.

Similarly, the material choice for the tiles or pavers is also critical in ensuring safety. Porcelain is an excellent choice as it is A1 fire rated and non-combustible, making it a highly safe and durable material for outdoor flooring systems.

When choosing a windproof flooring system, it is important to consider not only the aesthetics and functionality but also the safety of all components. A well-designed system with non-combustible materials and A1 fire-rated pedestals can help to ensure the safety of people and property in the event of a fire.

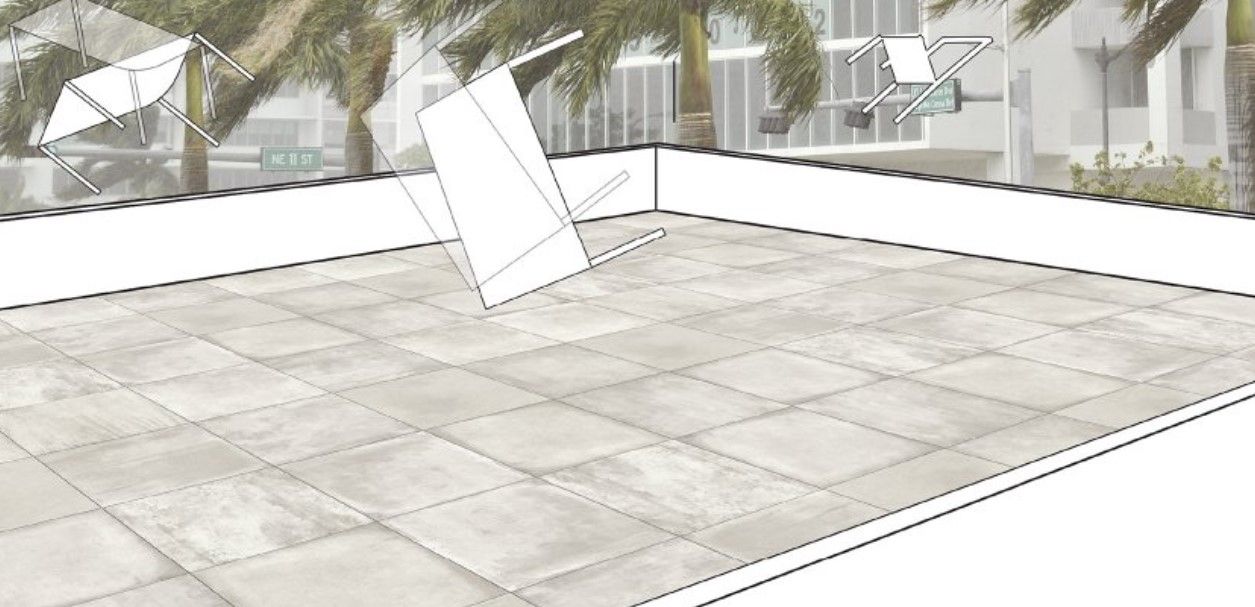

The Dangers of Not Using Windproof Flooring Systems

Not using windproof flooring systems for external outdoor paving can lead to a range of dangers, including:

• Risk of injury: Loose or dislodged tiles can pose a risk of injury to pedestrians, especially in areas with high foot traffic.
• Damage to structures: Strong winds can cause tiles to lift and shift, leading to damage to structures such as walls, benches, or outdoor kitchens.
• Increased maintenance costs: Frequent tile replacements and maintenance can be costly in the long run, increasing the overall maintenance budget.

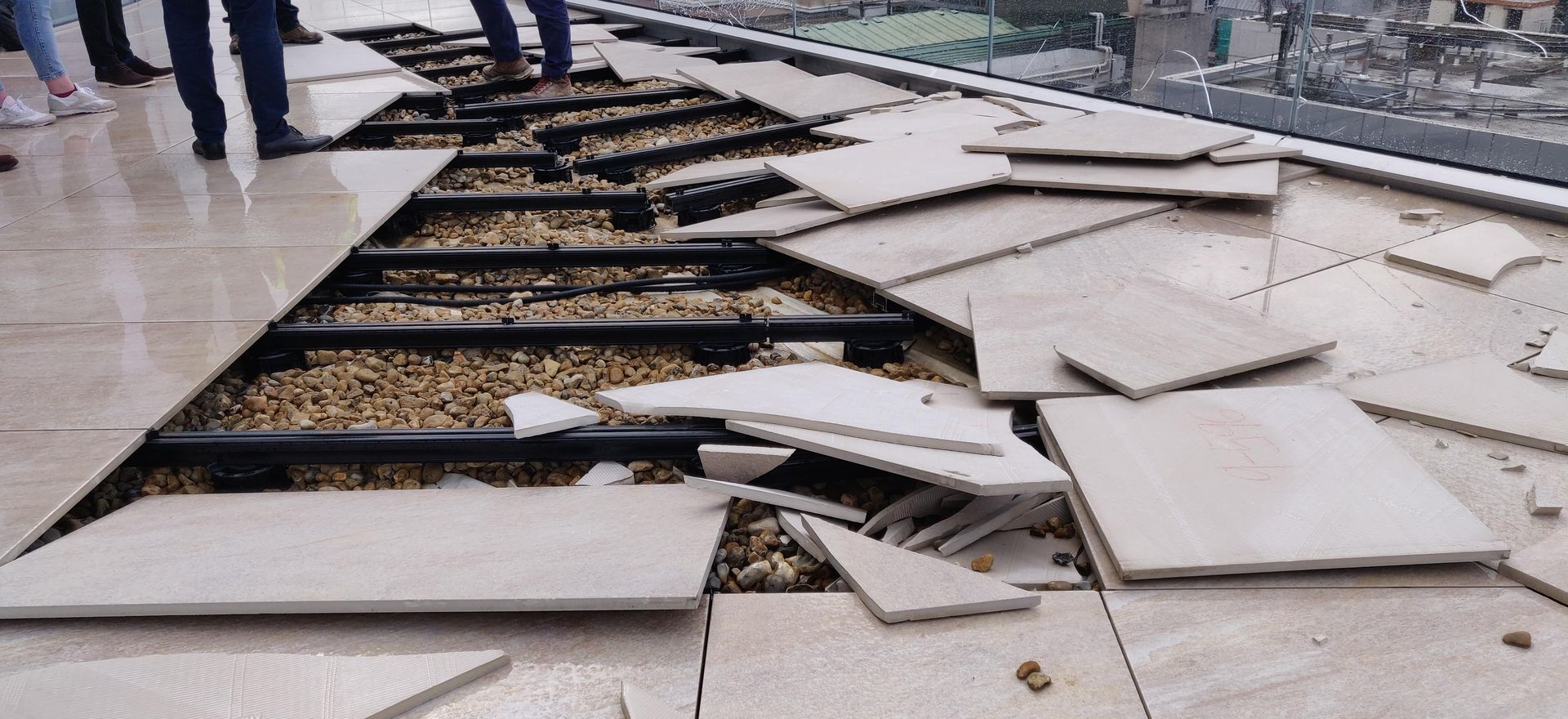

Project Failure Example of Non Windproof Flooring System

Here we look at a recent project in London in which a non windproof floor system was used to install porcelain outdoor 20mm paving, wind uplift has caused the floor to fail and caused severe damage, luckily nobody was hurt but the entire newly installed floor in now being replaced with a windproof system.

Conclusion

In conclusion, windproof flooring systems are an essential aspect of designing external outdoor paving for safety and durability. These systems offer numerous benefits to architectural design, including flexibility in design and peace of mind for architects. Not using windproof systems can lead to safety issues and costly repairs. By incorporating windproof flooring systems into their designs, architects can ensure that their projects are not only functional and aesthetically pleasing but also safe and durable.

Check out our Non Combustible A1 Fire Rated Windproof System which can be combined with any of our 20mm Porcelain Ranges.
